• FEH-400 (5-Axis Tilting Swiveling Rotary Table) CNC Rotary Table Pneumatic Brake
FEH-400
  • Table diameter provides a choice of Ø400mm.
  • Employs high rigidity, extra large radial and axial bearing.
  • Upon customer request, models with Ø170, Ø210, Ø250 can be equipped with Japanese made worm/worm gear.
  • For models over 255, the tilting axis employs the latest full circumference brake, featuring even braking force without runout. Maximum clamping area, higher clamping force, no vibration and no braking delay is required. High torque combined with compact, rigidity and enclosed structure ensure high cutting quality.
  • For models over 170, all support units employ the full circumference brake and large hole Japanese-made roller bearing.

 FEH-400 (5-Axis Tilting Swiveling Rotary Table) CNC Rotary Table Pneumatic Brake

Inquiry
Specifications
MODEL UNIT FEH-400
Table diameter mm Ø400
Center hole diameter mm Ø120H7
Through-hole diameter mm Ø120
90° Vertical height mm 300
0° horizontal height mm 370
T-slot width of table mm 14H7
Guide key width on tilting axis mm Ø18h7
Min.setting angle deg. 0.001
Servo motor model Motor Brand

Tilt axis

 Swiveling axis(Stra.)
FANUC α12i / ß22is α8i / ß12is
Mitsubishi HF-354S HF-224S
Positioning accuracy sec. 50 15
Repeatability sec. 8 6
Clamping torque Pneu. 5~7kg/cm² N.m - -
Hyd. N.m 2000
(25-30 kg/cm²)		 1600
(25-30 kg/cm²)
Teeth ratio - 1:120 1:120

Max. table speed (FANUC a motor)

 rpm 11.1 11.1
Allowable load capacity 0° Horizontal kg 230
0°-90°Vert. kg 150
Allowable cutting force
(Clamped status)		 F N 30000
FxL N.m 2000
FxL N.m 2500
Allowable torque on worm gear N.m 1200
Tilting angle kg/cm² +30~-120
Allowable inertia J=W.D²/8 deg. 9.7
Weight (Motor excluded) kg 770
*The specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.

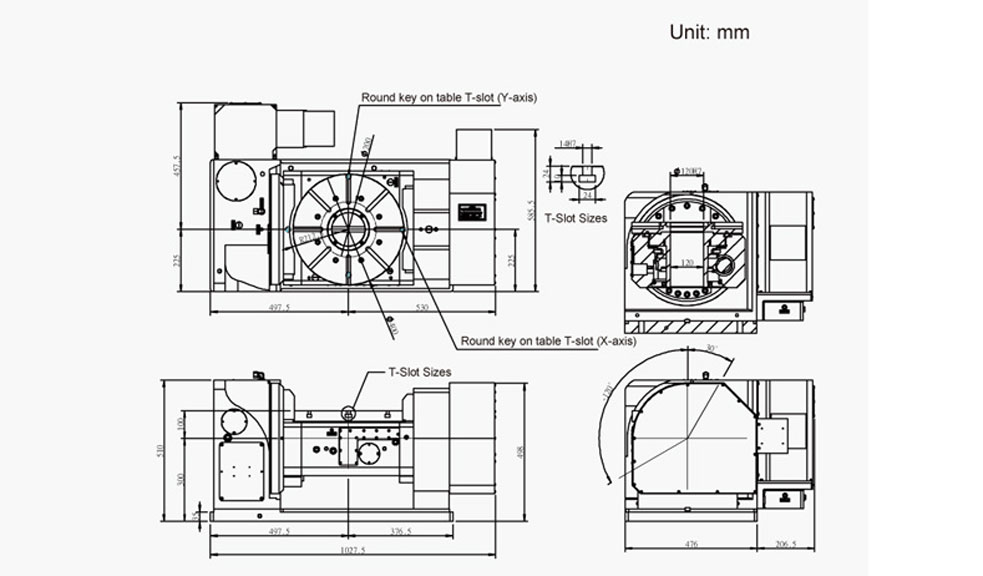

Dimensional Drawings
