FSA-170
FSA-170 (Single Arm 5-Axis Tilting Swiveling Rotary Table) CNC Rotary Table Pneumatic Brake
CTH-4 1/2-Axis Rotary Table
FSA-Single Arm 5-Axis Tilting Swiveling Rotary Table
FEH-5-Axis Tilting Swiveling Rotary Table Series
FSA-170
Ø170mm table diameter.

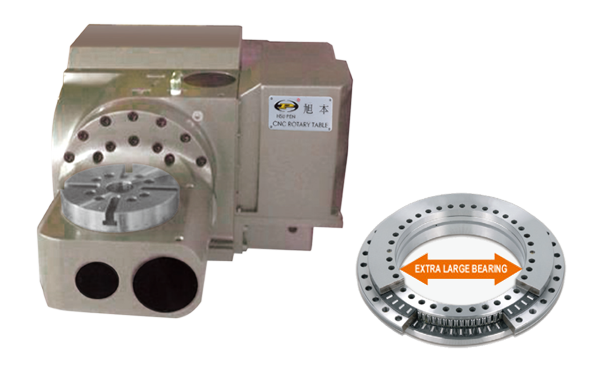

Employs high rigidity, extra large radial and axial bearing.
The tiling axis employs the latest full circumference brake, featuring even braking force without runout. Maximum clamping area, higher clamping force, no vibration and no braking delay is required . High torque combined with compact, rigidity and enclosed structure ensure high cutting quality.
Please provide the motor appearance information according to the motor brand, which will facilitate design and planning. For details contact us.
Inquiry
Specifications
MODEL
UNIT
FSA-170
Table diameter
mm
Ø170
Center hole diameter
mm
Ø40H7
Through-hole diameter
mm
Ø40
Height of table(Horizontal)
mm
160
Swiveling axis center to table center
mm
220
Height of table(Vertical)
mm
60
Swiveling axis center to table center
mm
12H7
T-slot width of table
mm
18h7
Guide key width on tilting axis
mm
0.001
Min. setting angle
deg.
Tilt axis
Swiveling axis(Stra.)
Servo motor model
Motor Brand
α8i / ß12is
α4i / ß8is
FANUC
HF-154S
HF-154S
Mitsubishi
60
20
Positioning accuracy
sec.
8
6
Repeatability
sec.
600
250
Clamping torque
N.m
35(Hyd.)
5~7(Pneu.)
Clamping method
kg/cm²
1:120
1:90
Teeth ratio
-
22.2
33.3
Max. table speed(FANUCa motor)
rpm
60
Allowable load capacity
0°Hori.
kg
45
0°-90°Tilting
kg
7000
Allowable cutting force
(Clamped status)
F
N
Hyd.: 350 Pneu.: 200
FxL
N.m
Hyd.: 400 Pneu.: 300
FxL
N.m
600
200
Allowa.ble torque on worm gear
N.m
±120
Tilting angle
deg.
0.20
Weight (Motor excluded)
kg
177
*The specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.

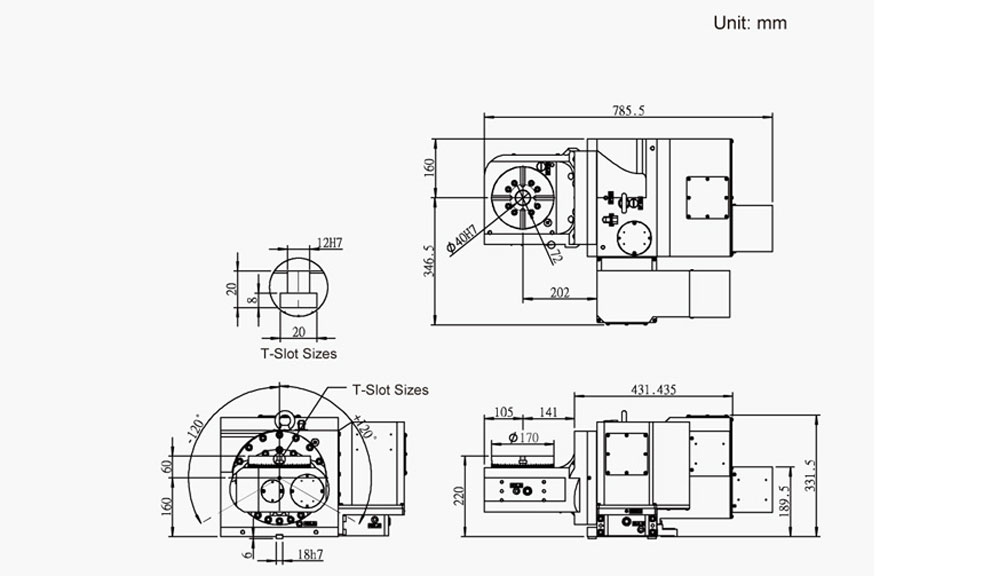

Dimensional Drawings
