SUA-170-2W/3W
SUA-170-2W/3W (2/3 Units) CNC Rotary Table Pneumatic Brake
SUA (Right Hand) Pneumatic Brake Series
SUA-L (Left Hand) Pneumatic Brake Series
SUA-B (Pneumatic Brake Back Type) Pneumatic Brake Series
SUA-2W/3W (2/3 Units) Pneumatic Brake Series
SUAC-Cross Type Roller Bearing Series
SUH-Hydraulic Full Circumference Brake Series

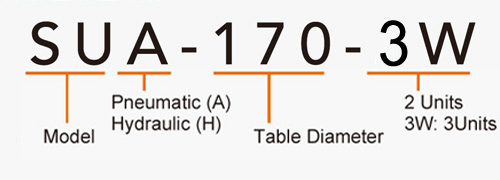

SUA-170-2W/3W
Table diameter provides a choice of Ø170mm.
Employs high rigidity, extra large radial and axial bearing.
Upon request, models with table diameter of Ø170, Ø210 and Ø250mm can be equipped with Japanese made worm/worm gear.
Equipped with special labyrinth type multi-piece disk brake that provides multi-surface braking. Big area design effectively increases clamping force. The table structure eliminates table surface floating problem.
Big hole design makes machining more convenient. Manufactured from high quality, durable cast iron. Increased body thickness increases load resistance capability. Large through-hole diameter. High strength, heavy cutting resistance as well as high precision.
Upon request, models with table diameter of Ø170, Ø210 and Ø250mm are available with hydraulic brake.
Various sheet metal guards are available to suit various brands of motors. Contact us for detail.
Other models
SUA-125-2W/3W
SUA-210-2W/3W
SUA-250-2W-3W
Inquiry
Specifications
MODEL
UNIT
SUA(H)-170-2W/3W
Table diameter
mm
Ø170
Center hole diameter
mm
Ø40H7
Through-hole diameter
mm
Ø40
Height of center (Vertical)
mm
180
Heightt of table (Horizontal)
mm
153
T-slot width of table
mm
12H7
Width of guide block
mm
Ø18h7
Min. increment
deg.
0.001
Indexing accuracy
sec.
20
Repeatability
sec.
4
Clamping torque
Air 5~7kg/cm²
N.m
200
Hyd. 20~30kg/cm²
N.m
400
Servo motor model
FANUC
-
α4i / ß8is
Mitsubishi
-
HF-104T
Teeth ratio
-
1 : 90
Max.table speed(FANUC a motor)
rpm
44.4
Allowable load capacity
Vertical
kg
85
Horizontal
kg
160
With tailstock
kg
160
Allowable cutting force(Clamped status)
F
N
14500
FxL
N.m
1020
FxL
N.m
180
Allowable torque of worm gear
N.m
170
Allowable inertia
J=W.D²/8
kg.m²
0.52
*The specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
Dimensional Drawings
