SUH-255N
  • Table diameter provides a choice of Ø255mm.
  • Employs high rig idity, extra large radial and axial bearing.
  • Upon request, models with table diameter of Ø255, Ø320 and Ø400mm can be equipped with Japanese made worm/worm gear.
  • Designed with the new full circumference brake that features even braking force without run-out. High torque, easy lubrication as well as compact, rigid and enclosed structure ensure high cutting quality.
  • Big hole design makes machining more convenient. Manufactured from high quality, durable cast iron. Increased body thickness increases load resistance capability. Large through-hole diameter. High strength, heavy cutting resistance as well as high precision.
  • Various sheet metal guards are available to suit various brands of motors. Contact us for detail.

 SUH-255N (Hydraulic Full Circumference Brake) CNC Rotary Table Pneumatic Brake

Inquiry
Specifications
MODEL UNIT SUH-255
Table diameter mm Ø255
Center hole diameter mm Ø80H7
Through-hole diameter mm Large holeØ80
Height of center(Vertical) mm 160
Height of f table (Horizontal) mm 200
T-slot width of table mm 12H7
Width of guide block mm 18h7
Min. increment deg. 0.001
Indexing accuracy sec. 15
Repeatability sec. 4
Clamping method Hyd. pressure kg/cm² 35
Clamping torque N.m 600
Servo motor model FANUC - α4i / ß8is
Mitsubishi - HF-154S
Teeth ratio - 1 : 120
Max.table speed(FANUC a motor) rpm 33.3
Allowable load capacity Vertical kg 110
Horizontal kg 260
With tail stock kg 260
Allowable cutting force(Clamped status) F N 20000
FxL N.m 1120
FxL N.m 700
Allowable torque of worm gear N.m 550
Allowable inertia J=W.D²/8 kg.m² 2.07
Weight (Motor excluded) kg 108
*The specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.

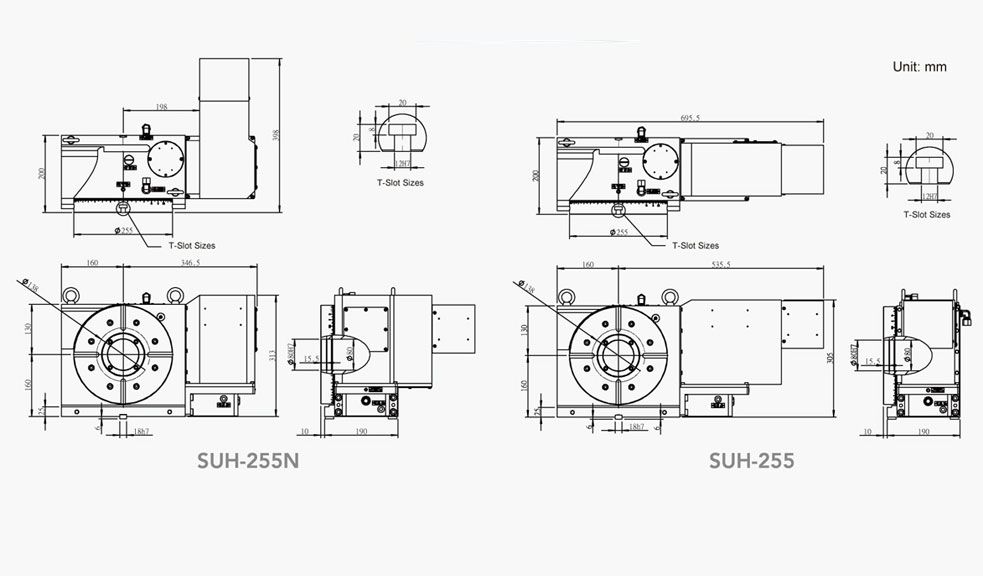

Dimensional Drawings
