SUH-320N

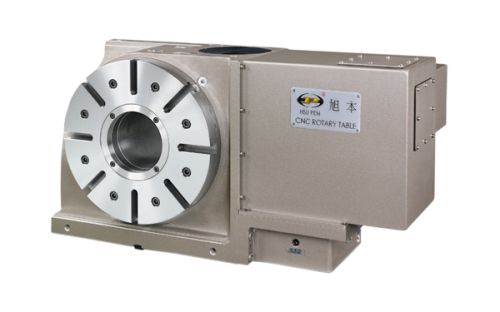

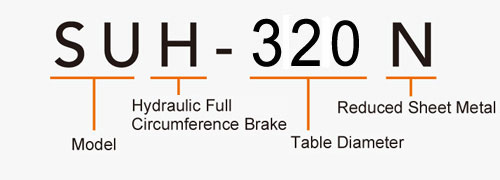

SUH-320N (Hydraulic Full Circumference Brake) CNC Rotary Table Pneumatic Brake
SUA (Right Hand) Pneumatic Brake Series
SUA-L (Left Hand) Pneumatic Brake Series
SUA-B (Pneumatic Brake Back Type) Pneumatic Brake Series
SUA-2W/3W (2/3 Units) Pneumatic Brake Series
SUAC-Cross Type Roller Bearing Series
SUH-Hydraulic Full Circumference Brake Series
SUH-320N
Table diameter provides a choice of Ø320mm.

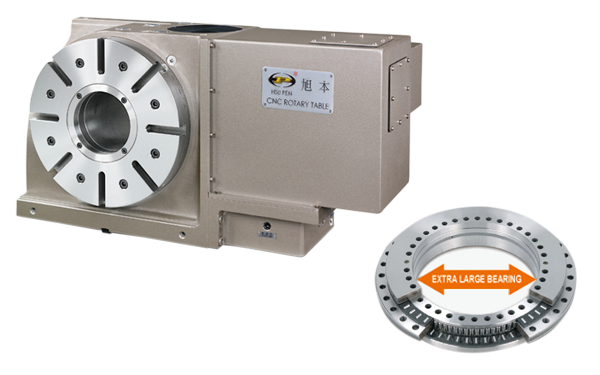

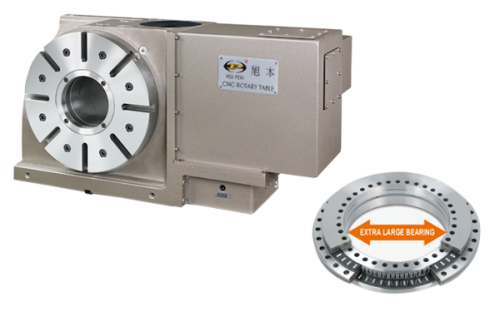

Employs high rig idity, extra large radial and axial bearing.
Upon request, models with table diameter of Ø255, Ø320 and Ø400mm can be equipped with Japanese made worm/worm gear.
Designed with the new full circumference brake that features even braking force without run-out. High torque, easy lubrication as well as compact, rigid and enclosed structure ensure high cutting quality.
Big hole design makes machining more convenient. Manufactured from high quality, durable cast iron. Increased body thickness increases load resistance capability. Large through-hole diameter. High strength, heavy cutting resistance as well as high precision.
Various sheet metal guards are available to suit various brands of motors. Contact us for detail.
Other models
SUH-255N
SUH-400N
SUH-500N
SUH-630N
SUH-800N
Inquiry
Specifications
MODEL
UNIT
SUH-320
Table diameter
mm
Ø320
Center hole diameter
mm
Ø120H7
Through-hole diameter
mm
Large holeØ120
Height of center(Vertical)
mm
210
Height of f table (Horizontal)
mm
235
T-slot width of table
mm
14H7
Width of guide block
mm
18h7
Min. increment
deg.
0.001
Indexing accuracy
sec.
15
Repeatability
sec.
4
Clamping method
Hyd. pressure
kg/cm²
35
Clamping torque
N.m
1150
Servo motor model
FANUC
-
α12i / ß22is
Mitsubishi
-
HF-204S
Teeth ratio
-
1 : 120
Max.table speed(FANUC a motor)
rpm
25
Allowable load capacity
Vertical
kg
170
Horizontal
kg
370
With tail stock
kg
370
Allowable cutting force(Clamped status)
F
N
30000
FxL
N.m
1800
FxL
N.m
1180
Allowable torque of worm gear
N.m
780
Allowable inertia
J=W.D²/8
kg.m²
4.5
Weight (Motor excluded)
kg
195
*The specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.

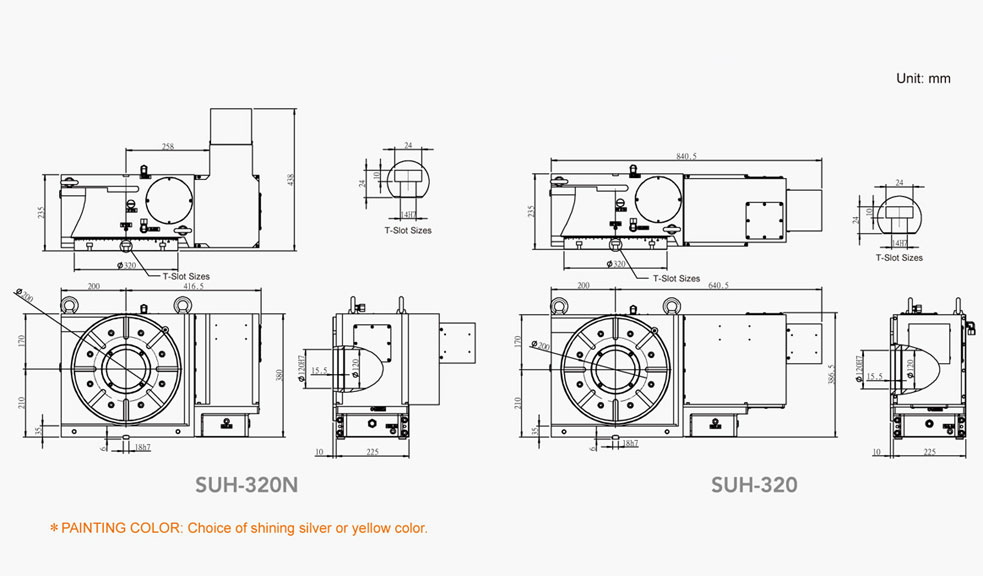

Dimensional Drawings
