SUH-630N

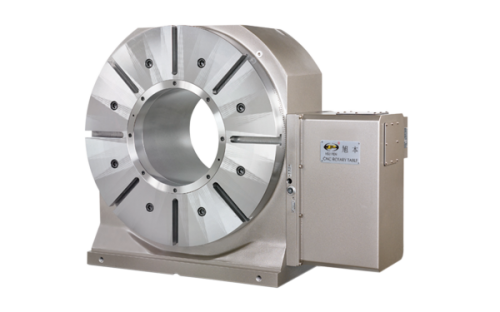

SUH-630N (Hydraulic Full Circumference Brake) CNC Rotary Table Pneumatic Brake
SUA (Right Hand) Pneumatic Brake Series
SUA-L (Left Hand) Pneumatic Brake Series
SUA-B (Pneumatic Brake Back Type) Pneumatic Brake Series
SUA-2W/3W (2/3 Units) Pneumatic Brake Series
SUAC-Cross Type Roller Bearing Series
SUH-Hydraulic Full Circumference Brake Series
SUH-630N
Table diameter provides a choice of Ø630mm.

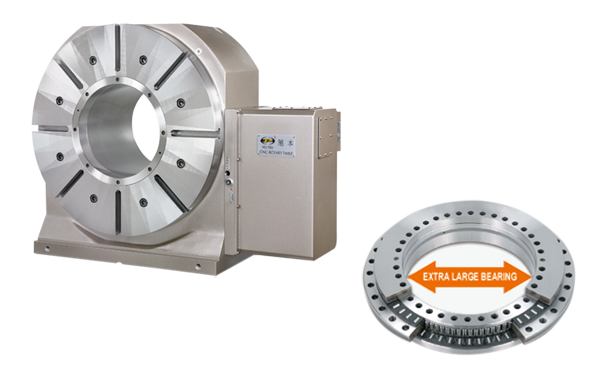

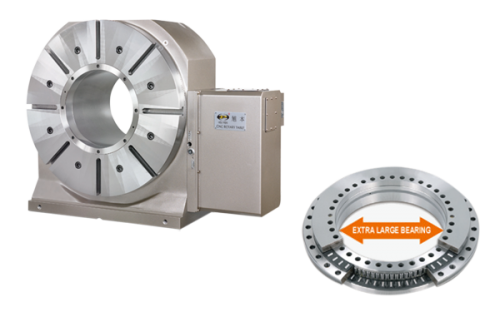

Employs high rig idity, extra large radial and axial bearing.
Designed with the new full circumference brake that features even braking force without run-out. High torque, easy lubrication as well as compact, rigid and enclosed structure ensure high cutting quality.
Big hole design makes machining more convenient. Manufactured from high quality, durable cast iron. Increased body thickness increases load resistance capability. Large through-hole diameter. High strength, heavy cutting resistance as well as high precision.
Various sheet metal guards are available to suit various brands of motors. Contact us for detail.
Other models
SUH-255N
SUH-320N
SUH-400N
SUH-500N
SUH-800N
Inquiry
Specifications
MODEL
UNIT
SUH-630
Table diameter
mm
Ø630
Center hole diameter
mm
Ø280H7
Through-hole diameter
mm
Large holeØ280
Height of center(Vertical)
mm
400
Height of f table (Horizontal)
mm
325
T-slot width of table
mm
18H7
Width of guide block
mm
18h7
Min. increment
deg.
0.001
Indexing accuracy
sec.
15
Repeatability
sec.
4
Clamping method
Hyd. pressure
kg/cm²
35
Clamping torque
N.m
6000
Servo motor model
FANUC
-
α22i
Mitsubishi
-
HF-354S
Teeth ratio
-
1 : 180
Max.table speed(FANUC a motor)
rpm
16.6
Allowable load capacity
Vertical
kg
980
Horizontal
kg
2000
With tail stock
kg
2000
Allowable cutting force(Clamped status)
F
N
49000
FxL
N.m
8500
FxL
N.m
4500
Allowable torque of worm gear
N.m
4300
Allowable inertia
J=W.D²/8
kg.m²
45.5
Weight (Motor excluded)
kg
686
*The specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
