• SUHC-255V (Vertical Tooth Type Hydraulic Positioning) Tooth Type Rotary Table
  • SUHC-255V (Vertical Tooth Type Hydraulic Positioning) Tooth Type Rotary Table
SUHC-255V

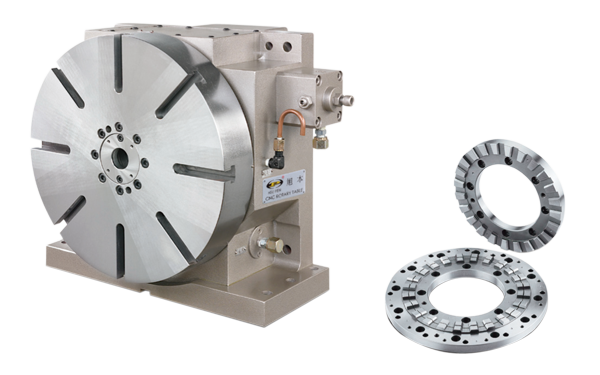

  • Table diameter provides a choice of Ø255mm, etc.
  • Employs three-piece clutch gear with accuracy reaching ±5 sec. Suitable for heavy cutting.
  • Choice of 4, 6, 8, 12 and 24 indexes.
  • Choice of special indexes 2, 3, 5, 9 . ...

 SUHC-255V (Vertical Tooth Type Hydraulic Positioning) Tooth Type Rotary Table

Inquiry
Specifications
MODEL UNIT SUHC-255V
Table diameter mm Ø255
Center hole diamet mm Ø30H7
Center hole depth mm 35
Through hole diameter mm Ø27
Height of center (Vertical) mm 160
Height of table (Horizontal) mm 180
T-slot width of table mm 12H7
Width of guide block mm 18h7
Indexing number (Standard) - 4/6/8/12/24(Standard indexes)
Indexing number (Spec.) - 2/3/5/9(Special indexes)
Indexing accuracy sec. ±5
Repeatability sec. ±2
Clamping method Hyd. pressure kg/cm² 35
Unclamp / clamp time s 0.7/0.1
Time of rotating90° s 2
Clamping torque kg-m 37
N 363
Allowable instant inertia J=W.D²/8 kg-m² 10
Allowable load Vertical kg 130
Horizontal kg 150
Allowable cutting force
(Clamped status)		 F kgf 1410
N 13818
FxL kgf.m 122
N.m 1197
FxL kgf.m 208
N.m 2038
Weight (Motor excluded) kg 65
*The specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
Dimensional Drawings
SUHC-255V (Vertical Tooth Type Hydraulic Positioning) Tooth Type Rotary Table
Back to List
