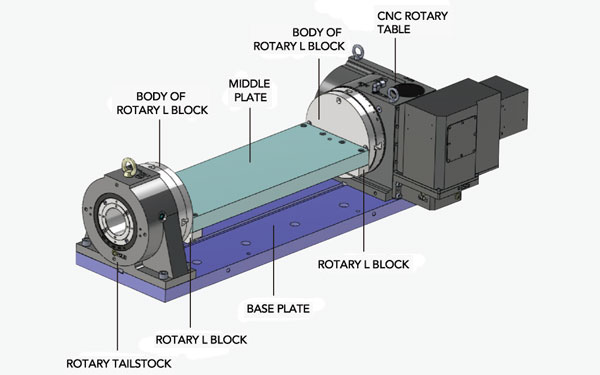

• Application Drawing of Connecting Plate Assembly

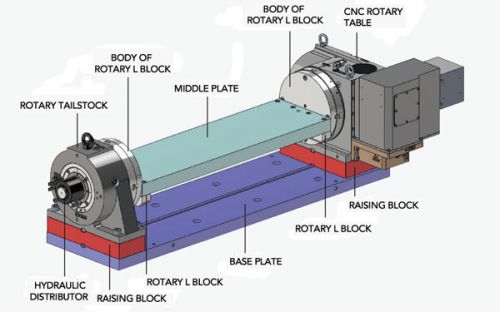

  • Application Drawing of Connecting Plate Assembly
Application Drawing of Connecting Plate Assembly
Inquiry
Specifications
Model/Dimn. A B C D E F G H I J K L M N O P Q R
SUA-125
SUARC-125		 755 240 400 30 125 100 140 226 271 51.7 57.8 302.5 261.5 103.2 20 1 14 30
SUA-170
SUARC-170		 886 240 500 35 170 100 175 261 316 30 78.5 351.5 261.5 103.2 25 0.5 18 40
SUA-210
SUARC-210		 983 240 600 40 200 100 200 286 295 33 75.5 351.5 261.5 103.2 25 0.5 18 40
SUA-250
SUARC-250		 1126 240 700 40 200 100 200 297 341 28.5 80 351.5 261.5 103.2 25 1 18 40
SUA-255
SUARC-255		 1156 350 700 45 200 100 200 330 353 121.5 77 365.8 398.5 155 25 1 18 40
SUA-320
SUARC-320		 1345 400 800 45 300 100 250 413 420 127 76.5 461.5 438.5 160 30 1 18 40
SUA-400
SUARC-400		 1468 450 900 45 400 125 295 495 505 105.5 80 457.5 435.5 164.8 30 1 18 40
Dimensional Drawings
Application Drawing of Connecting Plate Assembly
